Designing and Building a PC Card Installation Expert

by Gregg Weissman

This is an expanded version of the article that originally appeared in Dr. Dobb's Journal, Aug 96.

The Problem & the Approach to the Solution

Anyone who has tried using a PC Card (PCMCIA Card) over the last several years knows the promise and the frustration of the technology, which tries to be 'plug and play' and too often becomes 'plug and pray.'

The reasons for this include manufacturers' loose interpretations of the PC Card specification, subtle differences in the interactions between card, computer, and operating system, and simple pilot error. Effort on several vendors' parts has gone into fixing this problem, creating installation programs which will try to automatically configure the PC Card and driver software, PC Card system software (Socket and Card Services) which analyzes and tries to correct configuration errors, and adhering more closely to published standards.

For the manufacturer of a PC Card, the combinatorics of trying to be compatible with a dozen laptop makers with a dozen models each, a large handful of current and legacy versions of PC Card systems software, several species of operating systems, not to mention being interoperable with other PC Cards from other manufacturers, go beyond daunting to the realm of impossibility very rapidly. At Xircom we had the choice to limit the scope of compatibility we were willing to settle for, but instead opted to create an expert system that could solve the most common and most serious obstacles to a successful installation and compatible operation of our network and network/modem combo-cards.

Traditional procedural programming techniques and languages are excellent for accomplishing what they are intended to do, and can do almost anything if you push them hard enough, but I felt that there were serious deficits in using only a language like C to solve our problems. For one thing, a vast collection of statements like

if (problem_1_exists)
	do_solution_1();

didn't appeal to me esthetically, and would be too hard to maintain. A more table-driven approach, though, would have required setting up a meta-language for expressing problems and solutions, requiring a lot of documentation and training for newcomers to the project. In this day and age it is essential to think beyond the implementation of today's code, and consider its maintainability and evolvability over time. Revising and going through a code/test/release cycle on core code for the lifetime of the system as new sources of incompatibilities arose, and as our products went though hardware and driver revisions, also seemed like a burden that was too great in proportion to the payoff.

Based on some exposure to Prolog in the mid-eighties, when Borland made a splash with the release of an integrated development system and compiler, I started to seriously consider it as an ideal language to use to create our expert. Prolog has the capability to very simply perform tasks that would take hundreds of lines of C code, including exhaustively searching for solutions in a 'decision tree', allowing expression of rules and facts with little regard for procedural details, and supporting self-modification during execution. Facts, or simple statements describing the state of the system being installed onto, could be expressed in a Prolog 'database' and then a logic engine could digest all these facts and determine how to install a PC Card, instruct the user how to correct compatibility problems that would prevent correct operation, and select optimum configuration parameters.

The only problem was that, as well-suited as Prolog is to those sorts of tasks, it is awful for those times when you really want to do old-fashioned procedural programming like handling user interface tasks, talking to operating systems, and otherwise architecting major applications. When all you really want to do is just iterate, C is a lot more straightforward than Prolog. So the required solution looked like it was going to require an expert system built in Prolog, but with a traditional C or C++ application superstructure. The Prolog toolset that exactly fit the bill is the Amzi! Prolog compiler and logic server, which is one of just a few Prolog implementations that support easy integration with other high-level languages.

With Amzi! Prolog, development and compilation can be done within a Windows Integrated Development Environment (IDE), or you can edit a Prolog source file and compile from the DOS command line. The compiled source resides in a proprietary binary format file with an .XPL extension which is loaded by the "logic server" - a Prolog engine implemented in C which is provided in .DLL and .OBJ formats for linking to your application. Some easily implemented conventions allow you to call Prolog 'functions' from within a C (or C++ ... from now on I'll just lump them together as "C++") program, or to call from Prolog to C++ functions. With the comprehensive API provided for calling the logic server, you can manipulate the Prolog component to any level of detail desired, or you can call higher-level functions that hide the Prolog internals. This mix of capabilities made it the ideal choice for the project.

Structure of the System

The design of the complete system involved accounting for two very different tasks. The first was to collect as much information about the target computer, its configuration, PC Card software, and other installed devices as possible. The second task was to take all this information, make some sense out of it so that a configuration for installing the card could be determined, and detect failure modes that would prevent the installation from being successful.

The first task was accomplished by designing a series of C++ modules, including a general class library for working with DOS and Windows platforms and their dependencies, PC Cards, and PC Card systems software (Card Services). Utilizing the services of the general class library was a collection of classes which model system components. Deriving from a base "Device" class, classes for each component were responsible for detecting and reporting only those characteristics bound to that specific device type. An "IODevice" object was instantiated, for example, which only had the responsibility for reporting on IO port usage throughout the IO space, in a general way. Other examples are a "SoundCardDevice" object which had the task of detecting common sound cards and reporting on their characteristics, an "IRQControllerDevice" which analyzed the settings on the Peripheral Interrupt Controller chip as a means of detecting free IRQ's, and a "NetworkDevice" object which looked for open network connections. No doubt a real pro Prolog programmer could have done this all in Prolog, but for me the C++ approach was completely natural in handling the low-level, dirty job of snooping around the system while facilitating a 'pure' architecture which makes maintenance and enhancement of the code almost painless.

To analyze the PC Card environment, a class was defined to encapsulate examination and diagnostic functions that could report on a myriad of parameters representing the configuration parameters specific to PC Cards and Card Services. Functions highly specific to exercising Card Services capabilities and resource allocations were executed to probe every cranny of how well that complex system component was running. Details of how this part of the system was implemented is far outside the scope of this article, but anyone familiar with PC Card technology can probably appreciate the complexities of determining whether events were being generated correctly, if configurations could be selected, if Card Services was allocating and releasing memory and IO resources correctly, and so on.

What the Card Services and system diagnostics functions had in common was that the results of their tests were collected in a linked list of objects derived from an Assertion class. The Assertion class had the responsibility for linking together instances of itself and its subclasses, each instance containing a representation of a fact regarding system state. Assertions were generated in one of a small handful of canonical forms, with a subclass managing the storage and representation of that particular form. When all system diagnostics were complete, a static member function of the Assertion class was invoked to dump all assertions out to a disk file, in a form suitable for digestion by the expert system written in Prolog.

Also written in C/C++, but only loosely coupled with the "front-end" was, logically enough, a "back-end" which was responsible for executing diagnostic functions on the PC card being installed, under the control of the Expert System which is described below. Taking parameters from the Expert System, the back-end would actually test out configurations to ensure that the card would function as intended given the Expert's analysis, and report back a result. This showed off one of the strengths of the Amzi! system, which supported not only invoking the Prolog engine from the C++ front-end, but also supported calling back down to C functions from the Expert System.

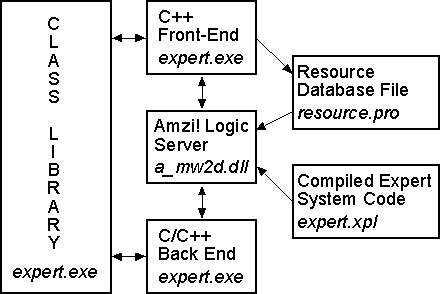

The overall system architecture looked like this, then:

The Expert System consisted of three main components: the Driver, the Rules, and the Assertions generated by the C++ front-end. The Driver and Rules were combined into one compiled executable which the Amzi! logic server executed. In the Amzi architecture, the logic server is a C++ object, implemented in this case as a DLL, invoked by the front-end by calling a few initialization routines, including one to load the target executable Prolog program, and then issuing a "run" function to the server. The Driver portion of the Expert System was simply a series of "function calls" to more complex rule processing, and will not be discussed here, as the fun was really in the core of designing and implementing the machine to digest all the facts about the system and come up with intelligent choices for configuring the card.

In order to design the Expert System, there needed to be a schema for how all the configuration information would be represented. Only after that was in place could the Rules be constructed that would process the raw data, or facts, and derive the desired answer: could the card be correctly installed given the configuration of the user's system?

The resulting schema represented configuration facts as a tuple associated with a resource type. The tuples associated with a resource type defined its locus, its value, and an attribute of the resource. For example, to designate the availability of an IO port, a fact would appear in the database: "ioresource(machine,0x300,used)."

Once this schema was defined, the vocabulary for the possible loci and attributes that could be associated with a resource were defined, as there were several. A resource locus could be "machine", meaning the resource was analyzed as part of the system hardware scan , or "cardsrv" (Card Services), meaning the resource was analyzed by the Card Services diagnostics, and other similar designations. Attributes were defined as "available" or "unavailable" primarily, with some adjunct attributes defined for additional flexibility.

The Value portion of the tuple always refers to the value of the resource under test: a memory address, an IO port address,an IRQ number, etc. A portion of the database the expert system was to operate on, therefore, looked something like this:

ioresource(machine,0x200,available).
ioresource(machine,0x220,available).
ioresrouce(cardsrv,0x200,unavailable).
...
memresource(machine,0xD000,available).
memresource(machine,0xD100,available).
memresource(cardsrv,0xD000,available).
...
irqresource(machine,8,available).
irqresource(machine,9,available).
irqresource(cardsrv,8,unavailable).
...

The entire range of system resources as pertain to the installation and configuration analysis were represented this way. IO port ranges were defined on 32-byte boundaries, and memory was analyzed on 4k boundaries, primarily as that is the minimum granularity of Card Services memory allocation logic, and it also served to keep the size of the database reasonable.

There were many other system attributes to be tested as part of the overall analysis that did not fit this canonical model, and they were represented in ad-hoc fashion, as exceptions that had to be handled specially. But the core of the analysis operated on the database as presented here.

With the database constructs in place, design of the rules began. A decision was made to implement the rules directly in Prolog, rather than, as in many expert systems, in a specialized expert system dialect interpreted by the Prolog engine. This gave us more flexibility and was a better fit to the very experimental nature of the project. In other words, we didn't know enough about what we were doing yet to design an expert system language as well as design the analysis. So the rules were coded in Prolog.

Here's where the strength of Prolog was brought to bear. A rule was written simply as a series of Prolog clauses that tested resources in the appropriate combinations and produced a result: either the combination of resources tested by a rule allowed configuration and installation of the card to proceed, or it revealed a conflict that would prevent proper operation and the process terminated with appropriate feedback to the user. Each rule could be designed totally independently from the others since there is generally no data coupling between Prolog "functions." All we had to do was capture the essence of what constituted a well-configured system, express the rules in Prolog syntax, fire the rules off in sequence and let them examine the data.

For example, let's start with a rule that says "if there is an IO port that the system scan indicates is usable, then if Card Services thinks it's usable too then it's a candidate for configuration of the card." In other words: if both the system scan and Card Services analysis indicate a free IO port, we can try to configure the card to use that IO port. Expressed in Prolog, this looked like:

iorule1 :-
	ioresource(machine,Port,usable),
	ioresource(cardsrv,Port,usable),
	try_io_port(Port),
	...

Example 1

In these three lines, Prolog is able to search the database of "ioresource" facts where "machine" is the locus, find any that match the "usable" attribute, return the associated IO port value in "Port", then search the ioresource facts that have "cardsrv" as the locus, "usable" as the attribute, and that match the Port value. And that's just the first two lines! If those clauses succeed, then the Port is used in a final diagnostic routine try_io_port, which validates that the card will truly work with that value of IO port. I that test succeeds, further logic is executed to do something useful with that IO port value. If any one of the three lines fails, then the rule fails, and the driver logic would take approriate action. This rule failing would translate to "there either is no port that is reported as available by both Card Services and a system scan, or even if there is, it doesn't work!"

This shortcuts a good deal of discussion as to the actual mechanism Prolog uses for the exhaustive search capability, called backtracking, but should convey the idea, and the power of using such an expressive language. To perform the same task in C(++) would take somewhere in the range of 6 to 12 lines, plus decisions as to data structure, variable naming and scoping, and on and on.

Before the core resource analysis was executed, though, we thought it would be helpful to look for known and common conflicts in resource and system configuration, and report back to the user any conditions that we could detect early on that would prevent installation. Here were more opportunities to exploit the power of Prolog, as several dozen complex rules defining conflicts were devised, each of which took only a few lines to code.

For example, we could detect if the system memory manager was configured incorrectly as follows: first, the front-end scanned upper memory blocks to determine what upper memory areas were excluded from the memory manager's control, and made other independent tests of the usability of the memory and its status as known to Card Services. If there weren't any memory blocks excluded from the memory manager, this was simply expressed as

conflict :- not memresource(memmgr,_,excluded).

Example 2

If Card Services was configured so that it might allocate a memory block that was not excluded from the memory manager, this was expressed as:

conflict :- memresource(cardsvc,Mem,usable),
	not memresource(memmgr,Mem,excluded).

Example 3

or, translated, "If a memory block is reported by Card Services and usable, and the memory block is not excluded from the memory manager command, then there is a conflict."

The front-end was able to generate a "fingerprint" of the installed system, and Prolog made short work of searching for a match in a database of known problem platforms and advise of incompatibilities. For example, the machine's identifier was obtained by the front-end and stored as a fact in the database as "platform (XXXX)" where XXXX was the specific value of the fingerprint; then we had a set of rules:

conflict :- platform(platform_type_1),
	not mem_rule.

mem_rule :- memresource(machine,Address,usable),
	Address > 0xCFFF.

Example 4

In these four lines of code, we embodied: "If the platform is platform_type_1, then if there is no memory free above upper memory address 0xD000:0000, then there is a conflict."

The modifiability and maintainability of this type of code, once the programmer was familiar with the basic nature of Prolog programming, was vastly superior to traditional C/C++, where there would have been, for each of these kinds of conditions and tests, loops to search the data, boundary conditions (what if there were no memory blocks reported for the "machine" locus at all?), and a complete edit/build/test cycle for each change. Using the Amzi! Prolog system and the architecture described, a new rule could be added and compiled into the rule base in a matter of minutes without having to touch any core code.

As mentioned above, another powerful feature of the Amzi! system is the ability not only to call a Prolog program from a C++ superstructure, but the capability of calling a C function as well, having it look just like another Prolog clause. In Example 1 above, the "try_io_port" clause was actually a call to a C routine that took an int value and performed low-level diagnostics on the card: again, a task much more reasonable to code in C and assembler than in Prolog! Note that these routines were in C and not C++, using the "extern C" linkage construct to force the C calling convention.

To do this was simple from the standpoint of integration with the logic server. A table of predicate names and their associated C function names, together with the number of arguments to be passed in from Prolog, is created in the C module. An initialization call is made to the logic server with a pointer to the table, and presto! predicates, written in C, are all available to your Prolog program.

The C functions all take one argument, which is a type defined by the logic server, which allows function arguments passed in from Prolog to be extracted one by one. The return type is a boolean truth value, indicating success or failure just as a native Prolog predicate returns.

So there is the capability for a complete integration of C(++) and Prolog, allowing the designer to use the proper tool for the job. The Amzi Prolog architecture allowed construction of complex system requiring both procedural and non-procedural tasks, and performed without any significant drawbacks. I would not have wanted to implement this system using any architecture other than one which allowed me to use a hammer to hit the nails and a screwdriver to drive the screws, and not, as is so often the case, have to see everything as a nail because all I had was a hammer.

Gregg Weissman was Manager of Systems Software Development at Xircom, Inc, and the architect and implementer of the software described in this article. He has sinced moved to Mountain View where he works for Spyrus, Inc as Director of PC Security Products. He can be reached at [email protected].
