Listener

Prolog programs, unlike conventional programs, are collections of predicates, which are like logical rules. A Prolog program is constructed of an interconnected network of these predicates, referring to each other. So a Prolog program could be called a logic base instead.

The Prolog listener is an interactive environment that allows a programmer to query any part of the Prolog logic base, or program. It is a powerful application development and test tool.

Amzi! provides two listeners, one activated from the command line, the other from the Interactive Development Environment (IDE).

Starting and Stopping the Listener
Entering and Editing Commands
Adding and Removing Clauses
Listing Clauses
Querying the Logic Base
Consulting Prolog Source Files
Loading Compiled Prolog Code
Listener Commands

Starting and Stopping the Listener

IDE

To start the listener from the IDE without consulting any Prolog source files:

Select Run | Listener from the menu,
or
Press on the tool bar.
or
Press on the Listener View tool bar.

To start the listener consulting a single source file, open or highlight a .pro file and:

Select Run | Run As... | Interpreted Single File

To start the listener consulting an entire project, open a .pro file in the project for editing or select the Prolog Project in the Navigator View:

Select Run | Run As... | Interpreted Project

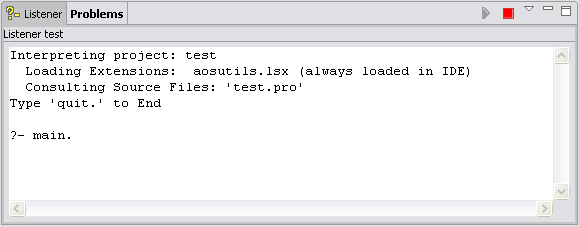

This will consult all the .pro files in the project directory. If you want to exclude one or more files, specify them in your Project Properties. Also any libraries and Logic Server Extensions specified in the project are automatically loaded. All the consulted and loaded files are listed when the listener starts as shown below:

To exit the listener either:

Press the button on the Listener View tool bar,
or
Type quit. at the listener ?- prompt.

Command Line

At the command line prompt enter the command alis. You will then see the ?- prompt. To exit, type quit.

>alis

Amzi! Prolog Listener
Type 'quit.' to exit

?- write(hello).
hello
yes
?- quit.
>

When running the listener from the command line, you can optionally specify a list of files to be consulted as arguments. These files are then consulted before the listener prompt is shown.

>alis dw_main dw_rules dw_data

main/0 - if the files that are loaded from the command line contain a main/0 predicate, then it is called immediately. So alis can be used to immediately run a Prolog program from its main/0 predicate.

Entering and Editing Commands

You enter commands and queries after the ?- prompt. You can use the up/down arrows to peruse the queue of prior lines that you typed into the listener. You can also edit those lines using the left/right arrows and delete key. There are copy and paste commands on the edit menu to copy some or all of the output.

Adding and Removing Clauses

Once in the listener, dynamic clauses can be added to the logicbase in a number of ways.

assert

assert, asserta, and assertz can all be used to directly add clauses. By default, the clauses will be added to the default module, user. If other modules are available, then assert can take a module specifier as well.

?- assert( likes(ella, crackers) ).
yes

Adding a Rule

A term with a neck symbol, ":-", is a rule. If the rule has no body, then use the body true to ensure the clause is added.

?- likes(ella, pizza) :- true.
Term asserted

Consulting user

?- consult(user).
|  likes(leona, lettuce).
|  likes(leona, pool).
|  quit.
yes

add

?- add.
|  likes(basil, carrots).
|  likes(basil, hay).
|  quit.
yes

Clauses can be replaced by using replace, just like add. The only difference is the old clauses for the predicate are removed first, and replaced with the new ones.

Removing Clauses

Once in the logicbase, dynamic clauses can be removed with any of the built-in predicates that provide that service, such as retract and abolish. See the Prolog Logicbase section for details.

?- retractall( likes(basil, X) ).
yes

Listing Clauses

The listing predicate displays a listing of your clauses. It has a few forms.

listing - list all of the dynamic clauses in the logicbase

listing(Module) - list all of the clause in module Module.

listing([Module:]Name) - list all of the clauses of predicate Name in optionally specified Module. Note that this will display clauses of different arities that have the same name.

listing([Module:]Name/Arity) - list all of the clauses of Name/Arity in optionally specified Module.

For example, after adding the clauses as shown in the section above:

?- listing.

user:likes(ella, crackers).
user:likes(ella, pizza).
user:likes(leona, lettuce).
user:likes(leona, pool).
user:likes(basil, carrots).
user:likes(basil, hay).

yes

Note that the clauses were all asserted to the default module, user.

The listing is displayed using the built-in predicate pp/1, the "pretty printer." You can define your own pretty printer and call it user_pp/1. If so, listing and other built-in predicates will use your pretty printer.

Variable names are not preserved when clauses are asserted to the logicbase, so listing generates new names for the variables as it displays. The names are of the form _n where n is an integer.

Querying the Logic Base

At the listener prompt "?-" You may enter any Prolog goal, including compound conjunctions of goals, separated by ",", and disjunctions, separated by ";".

The listener attempts to prove the goal, returning values of any variables. You can then enter:

semi-colon (;) - request backtracking to look for more answers.
Enter key - to return to the listener prompt.

When there are no more answers, the listener responds with no and returns to the ?- prompt.

Examples:

?- likes(ella, X).
X = crackers ;
X = pizza ;
no

?- likes(X, Y).
X = ella
Y = crackers ;
X = ella
Y = pizza      % [Enter] key pressed
yes

?- likes(X, A), likes(X, B), A \= B.
X = ella
A = crackers
B = pizza ;
X = leona
A = lettuce
B = pool ;
no

If the value of a variable is undefined, then the internal notation for the variable is displayed. It is of the form Hn, where n is an integer. For example

?- X = foo(A,B,A).
X = foo(H8,H9,H8)
A = H8
B = H9

Consulting Prolog Source Files

Normally, you will run a single file or project from the Run | Run As... menu and let the IDE automatically consult your Prolog source code files. However, if you need to add or replace files, there are two ways to get predicates from a Prolog source file into the logicbase as dynamic predicates.

consult - takes each clause from the source file and asserts it to the logicbase. After consult, listing will show all the clauses from the file. Using consult twice for the same source file will result in duplicate entries in the logicbase.
reconsult - is similar to consult, but before the clauses for a predicate are asserted, any pre-existing clauses for that predicate are retracted. Reconsult is often used during program development, as changes are made to the source file, and the file then reconsulted. Reconsult can also be used for the first consult of a file, that is, consult is not really necessary.

Reconsult only retracts clauses for predicates that are about to be reconsulted. If a predicate in the logicbase does not have a replacement in the source file being reconsulted, then that predicate is not removed.

Consult has a few forms:

consult(File) - the specified file is consulted. If no extension is provided, then '.pro' is assumed.
consult( [File1, File2, ..., FileN] ) - consults each of the files in the list.
[File1, File2, ..., FileN] - a shorthand just for the listener, if a list is given as a goal at the ?- prompt, the listener assumes it is a list of files to be consulted.

Reconsult has two forms:

reconsult(File) - the specified file is reconsulted. If no extension is provided, then '.pro' is assumed.
reconsult( [File1, File2, ..., FileN] ) - reconsults each of the files in the list.

Loading Compiled Prolog Code

From within the listener you can load compiled (.plm) Prolog files. The predicates can be used as goals, just as for consulted (.pro) files. The compiled predicates will be faster and use less stack and heap resources than the interpreted (consulted) predicates, but you will not be able to see them with listing or the debugger.

There are a few ways to load a compiled (.plm) file:

load(File) - loads the file, assuming an extension of .plm.
load( [File1, File2, ..., FileN] ) - loads each of the files in the list.
consult( 'file.plm' ) - for any form of consult, including command line and IDE options, if the file is a .plm file, then it will be loaded instead of consulted.

Listener Commands

These predicates, except pp and user_pp can be entered only at the ?- prompt in the listener.

add

Allows you to add dynamic clauses to the logicbase. This is equivalent to consult(user).

debug

Enters the Command-Line Debugger. See the Command-Line Debugger section for more information. There is also a Source Code Debugger.

pp(Term), user_pp(Term)

pp first tries to prove user_pp(Term). If this fails then it will pretty print Term at the user terminal (labeling variables using numbervars/3 and printing separate goals on separate lines).

quit

Exits the current listener.

replace

Allows you to replace dynamic clauses in the logicbase. This is equivalent to reconsult.

replace expects a sequence of clauses, followed by [ctrl-z] or 'quit.' rather than a single clause.
